As most of us know, there hasn't been a new Chisholm-Ryder grape harvester manufactured for 20 plus years. In some areas it has become increasingly hard to find parts to repair these machines. Many field updates have been implemented over the years. Some have worked very well. Others still need upgrading. We have been servicing and selling parts for these harvesters for the past 15 years and have most of the parts you may need. The list shown here is a small part of the parts we stock. Due to many variables in costs, please e-mail us or call us for prices and quantity availabilities.



D-S539D
FOR LEFT SIDE OF MACHINE

D-S539E
FOR RIGHT HAND SIDE OF MACHINE

TRASH CHAIN GEAR BOX
REPAIR PARTS ARE AVAILABLE

G-GHB-A3502

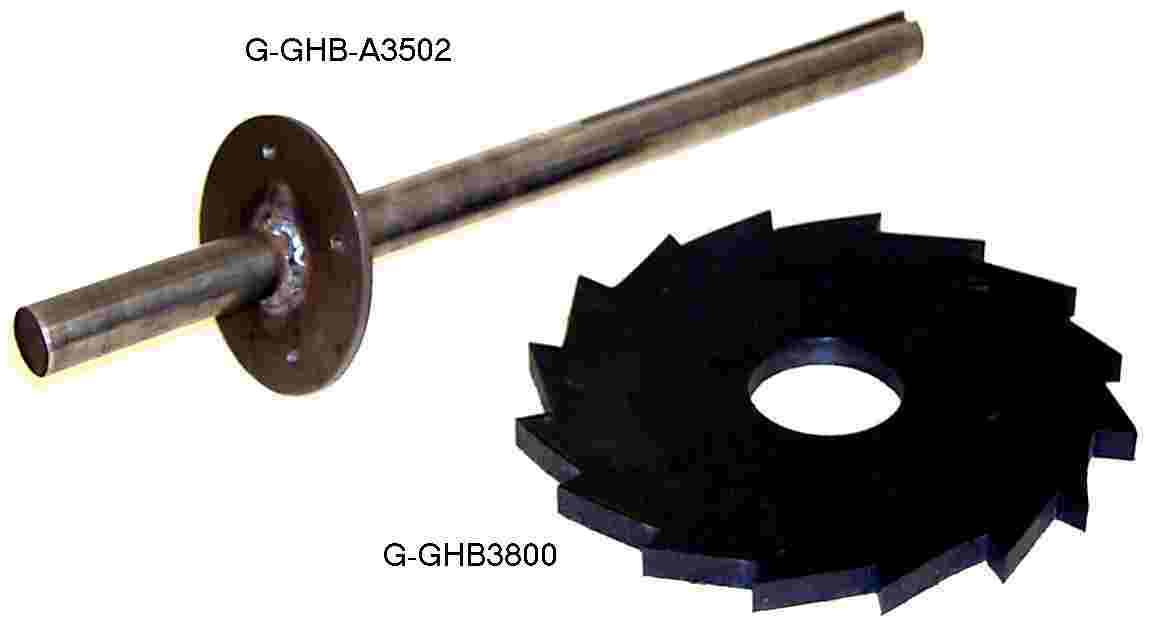

TRASH FLIPPER SHAFT

G-GHB3800
TRASH FLIPPER

G-GHB3525

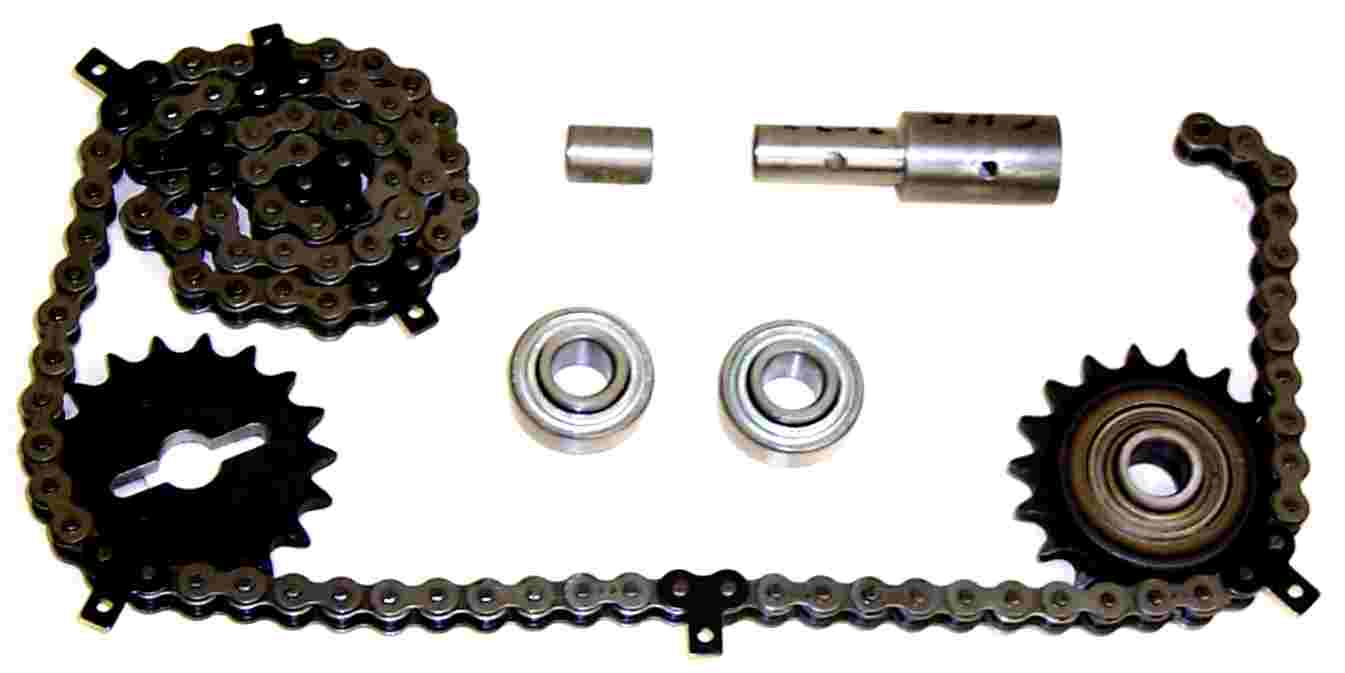

TRASH CHAIN

G-GHB3522
SPROCKET WITH SLOT HOLE

G-R2961
SPROCKET WITH BEARING

G-S070D
BEARING

G-GHB3524
SHORT SHAFT

G-GHB3523
DRIVE SHAFT


This universal wing is used with several different collector pivot system. Check your bolt pattern before ordering.


These pivot blocks have had the longest field life of anything we have had. Don't be fooled by look-alike's.


G-901-024
COLLECTOR WING

WE STOCK SEVERAL DIFFERENT BOLT PATTERNS
MEASURE YOUR BOLT SIZE AND SPACINGS BEFORE ORDERING.

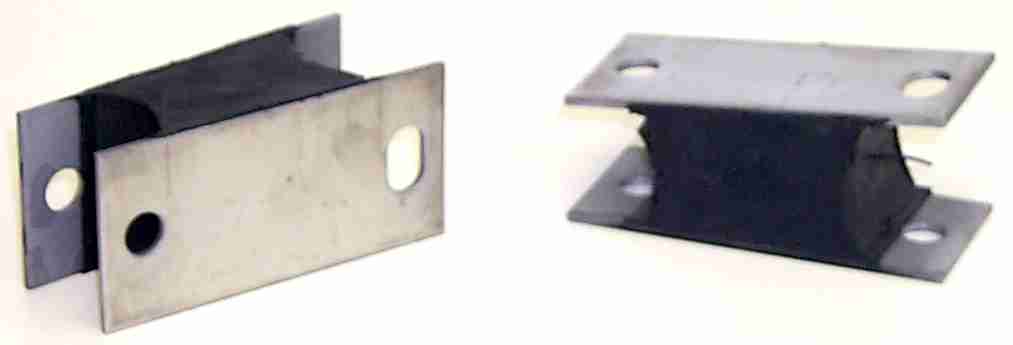

G-101514




Replacement parts for the Australian pivot system


Australian collector pivot system

G901-012 Spring
G901-013 Spring
G959-007 Pivot Block

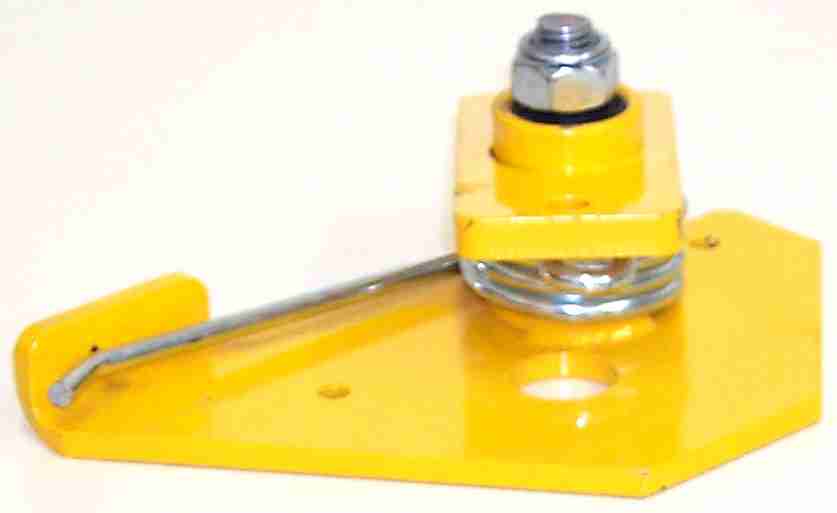

G901-022 Left pivot assy.

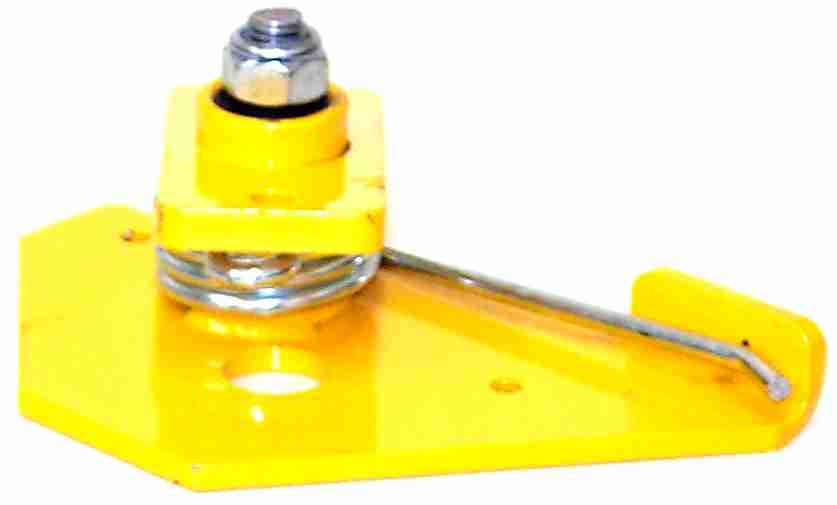

G901-021 Right pivot assy.

G-GHB-A8841

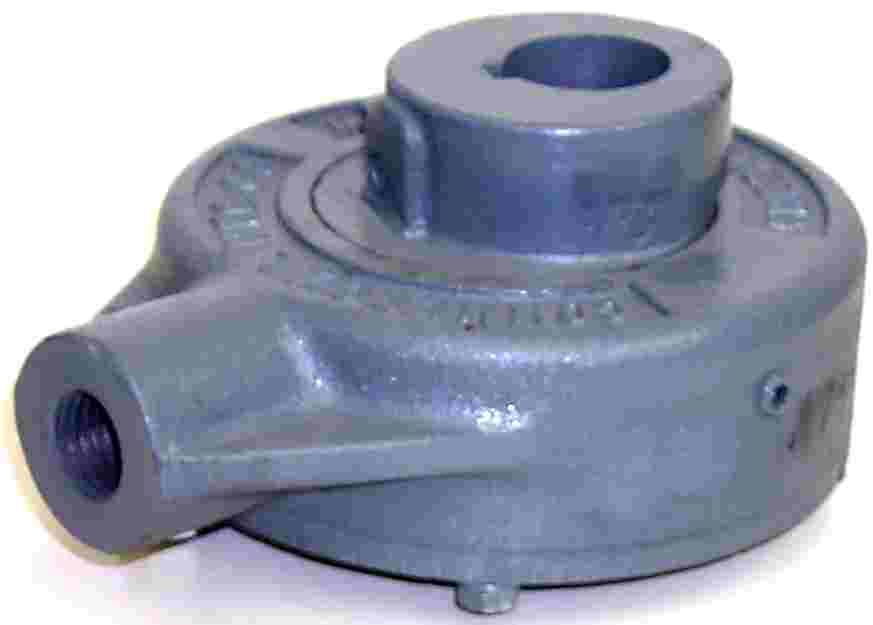

ECCENTRIC BEARING FOR "800" SERIES AND MACHINES WITH TWO ECCENTRICS PER SIDE.

G-GHB-A2744
ECCENTRIC BEARING USED ON ALL EARLY MODELS WITH 4 ECCENTRICS PER SIDE



Early rod end type

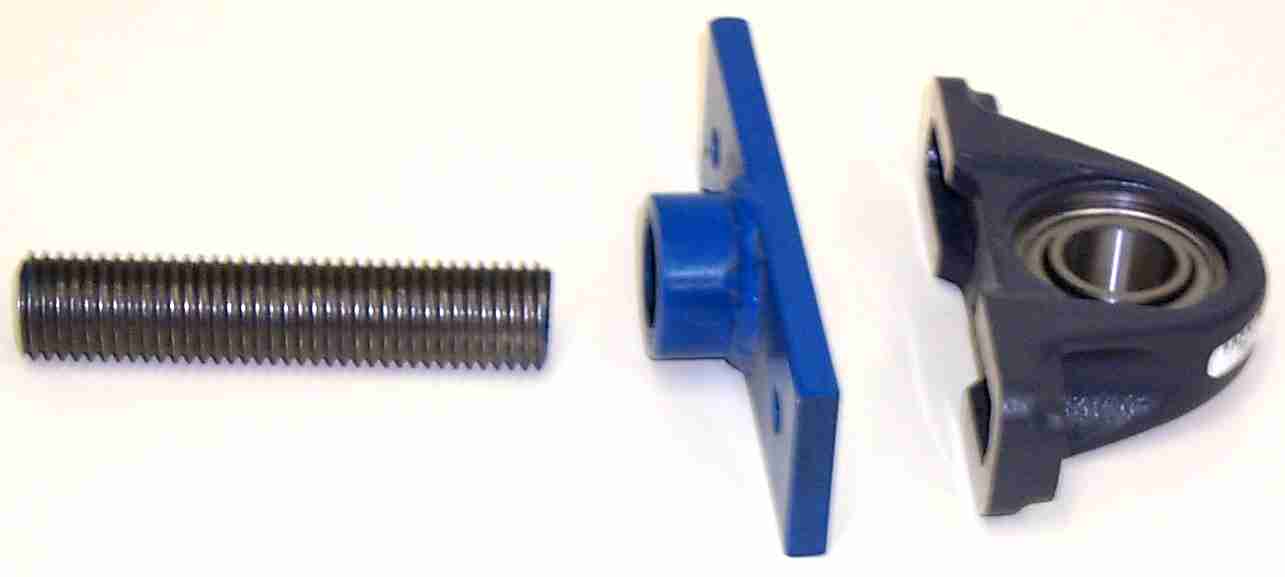

G-GHB2730

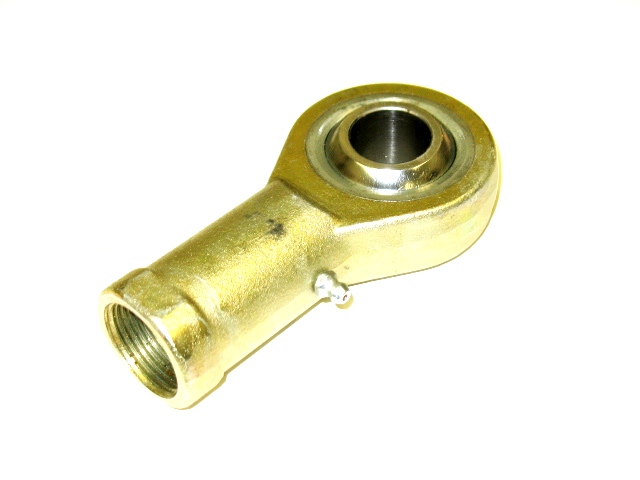

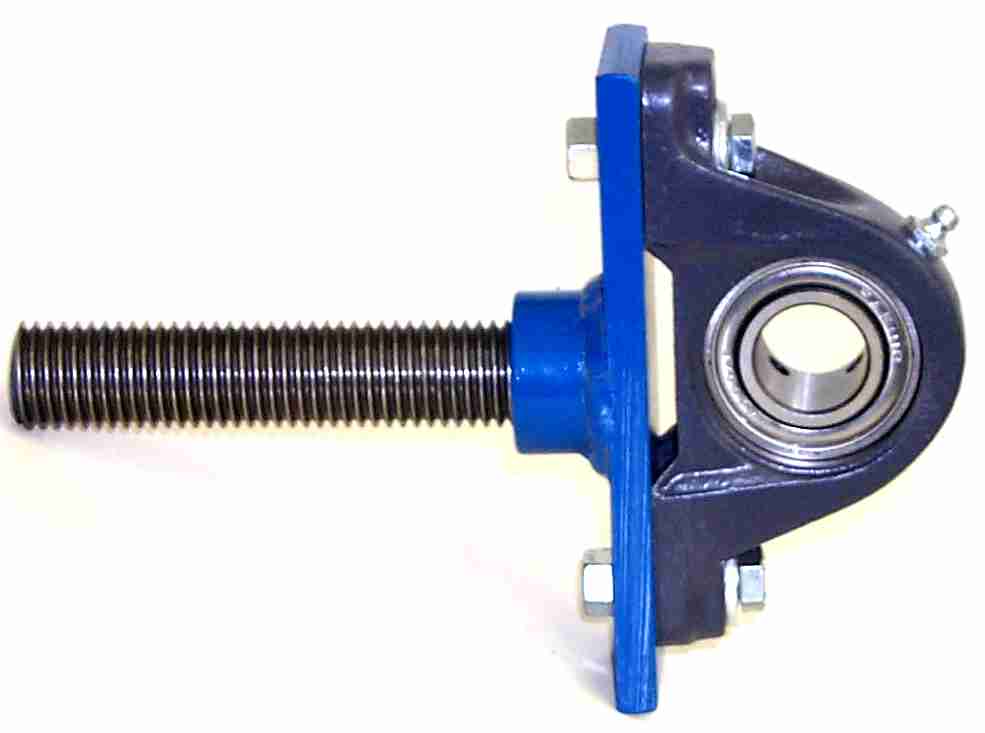

Rod end for '800' Chisholm-Ryder G-S550A

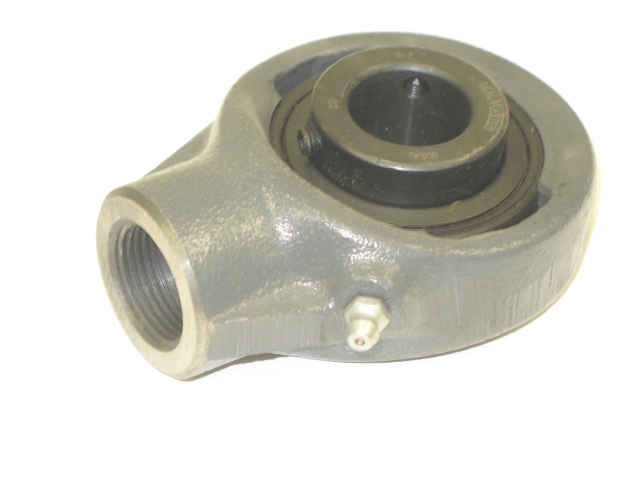

Rod end bearing G-GHB2730S

Steering arm used on all Chisholms, but '800' machines

G-670039

Out of stock

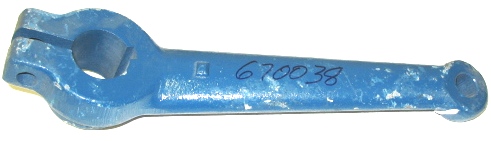

Steering arm used on all Chisholms, but '800' machines G-670038



Picture not available at this time



Rod end G-S648D

Picture not available at this time



WIDE SLOTT AND NARROW SLOT TAKE-UP BRGS G-S538A
G-S538C

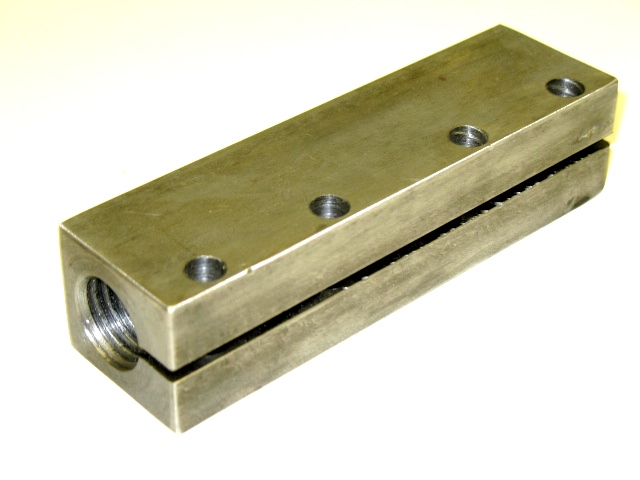

Eccentric turnbuckle G-GHB-A3242

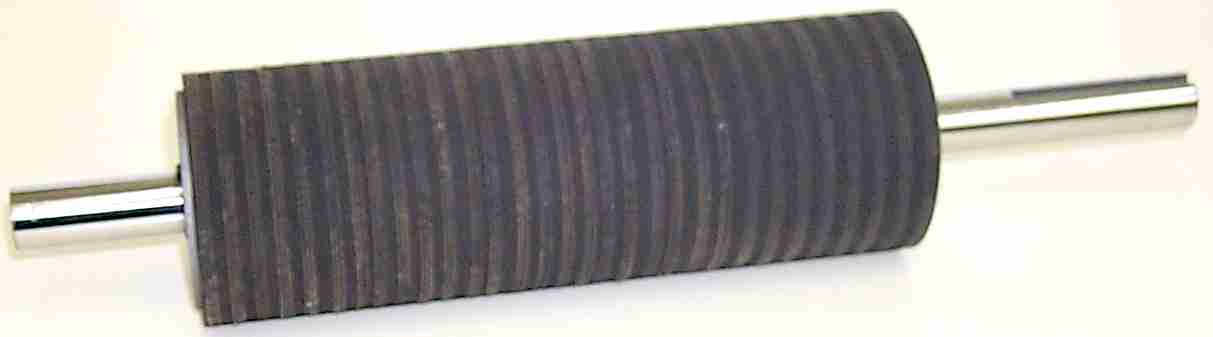

We build rollers in many different sizes, both drivers and idlers. We build rollers from 3" diameter to 5" diameter, and up to 18" long. We even build them with a center "V" guide for machines that require it. If your roller is standard we should have it in stock. Belt Rollers
THIS CLAMP DOES NOT WRAP VINES LIKE THE OLD ORIGINAL CLAMPS DID.

G-PC0304R
ROUND SHAFT COUPLER .
REPLACES RECTANGLE CLAMPS

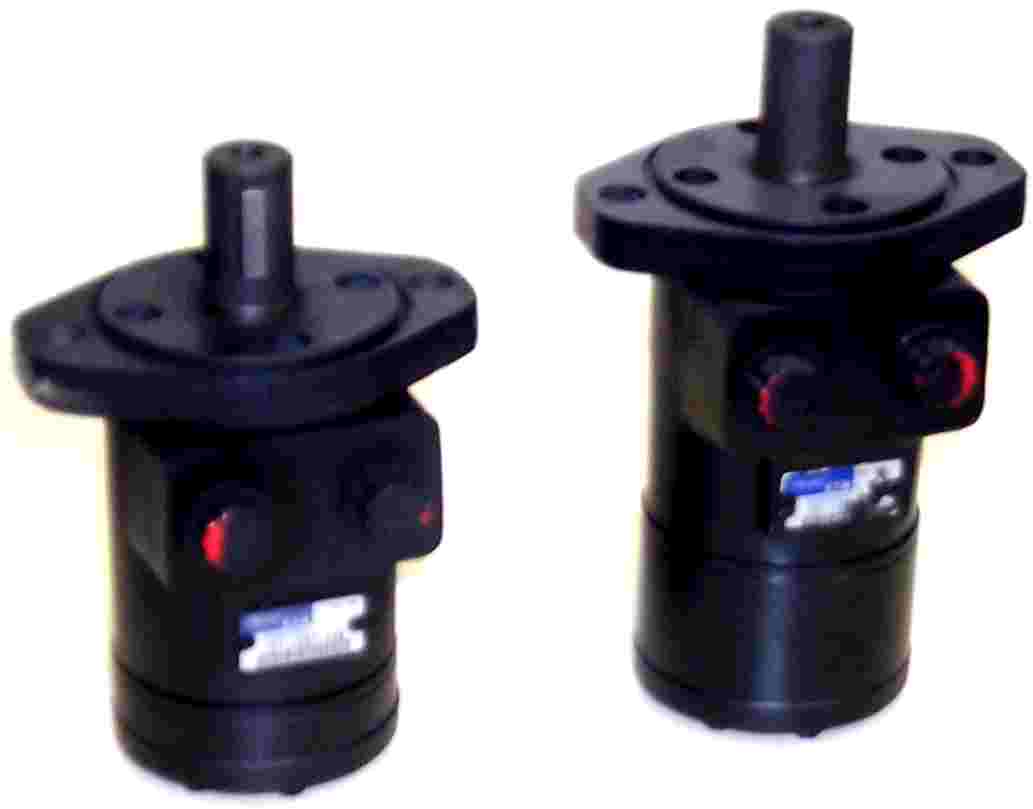

THERE WERE MANY DIFFERENT HYDRAULIC MOTORS USED DURING THE PRODUCTION YEARS. WHEN ORDERING GIVE US ANY NUMBERS STAMPED ON THE ID PLATE AND THE WIDTH OF THE MACHINED SANDWITCH ON THE END OPPOSITE THE DRIVE SHAFT. WE STOCK MOST OF THE DRIVE MOTORS.
ANG;E DRIVE GEAR BOX

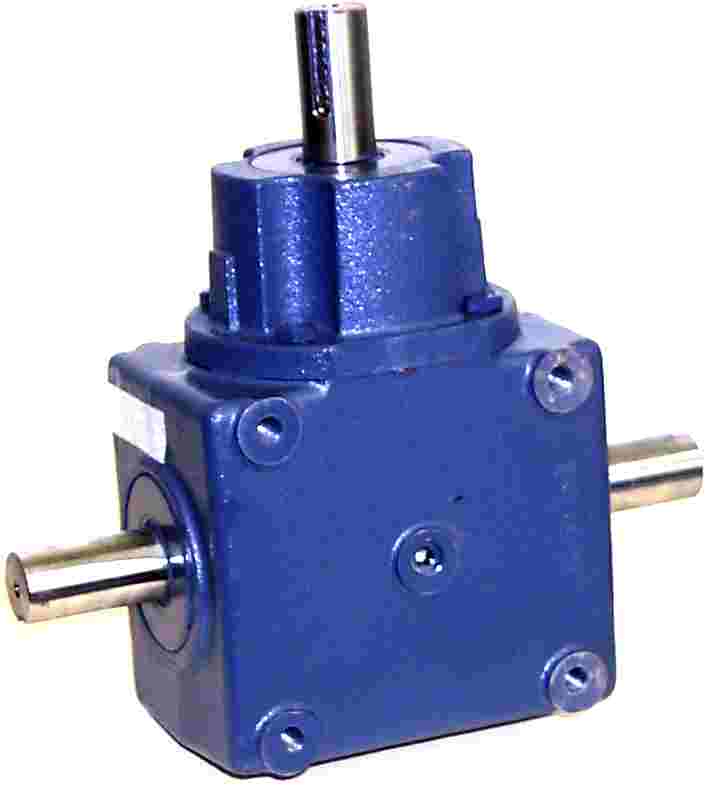

G-S530H



ORIGINAL LOCK NUT AND WASHER SYSTEM FOR

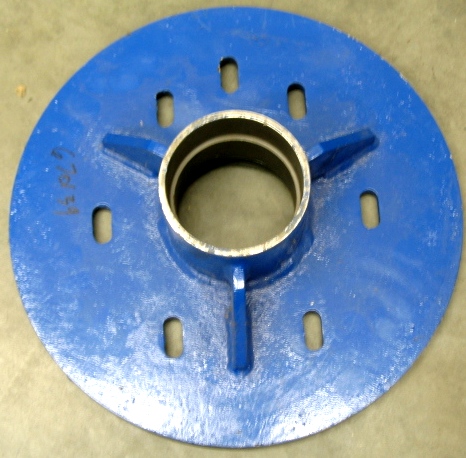

AXLE #G-670139
Priced per each

Nut
G-670074

Washer
W11

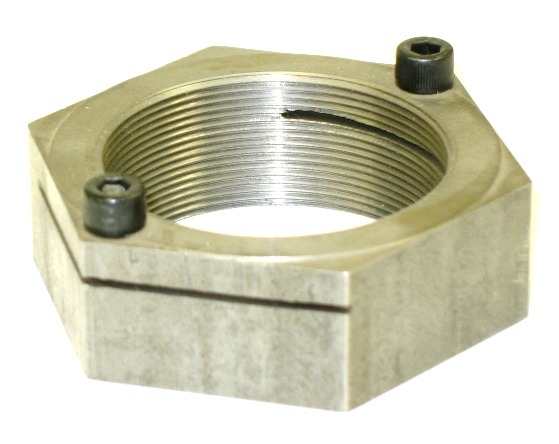

UPGRADE NUT FOR
AXLE #G-670139
G-673023

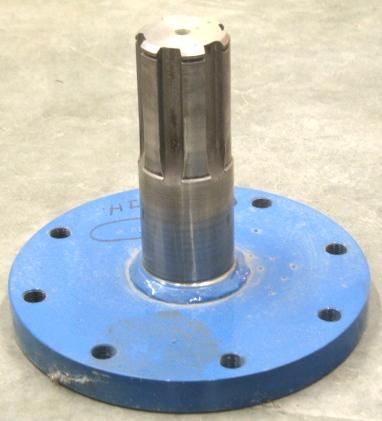

AXLE G-670067A

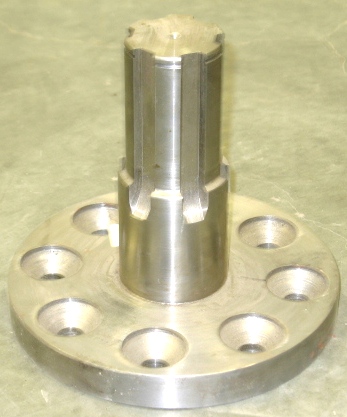

AXLE G-671085
AXLE G-672020ih
AXLE HOUSING G-670139
Out of stock DRIVE FOR "800" CHISHOLM-RYDERS

Special order

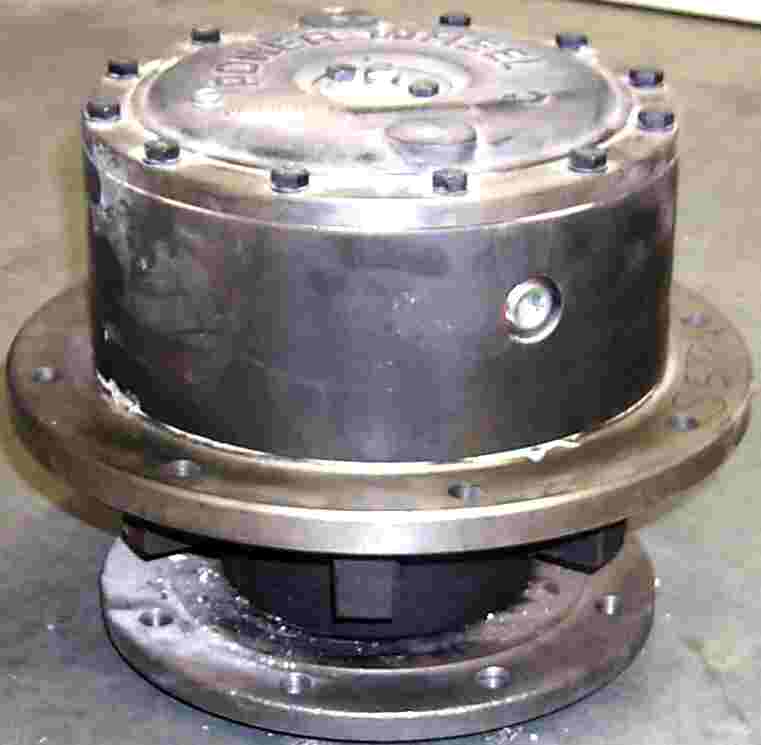

G-S577A

Out of stock
WITH OUR SENSOR MATCHED TO IT, IT CAN BE USED ON VIRTUALLY ANY OLDER HARVESTER IN THE FIELD TODAY.

G-S667H
STRIKER SPEED METER



2 IN STOCK CHISHOLM-RYDER HAD TWO DIFFERENT SPEED-SENSING SYSTEMS USED ON THEIR 800 MACHINES, NEITHER OF WHICH HAS PARTS AVAILABLE TO DAY.

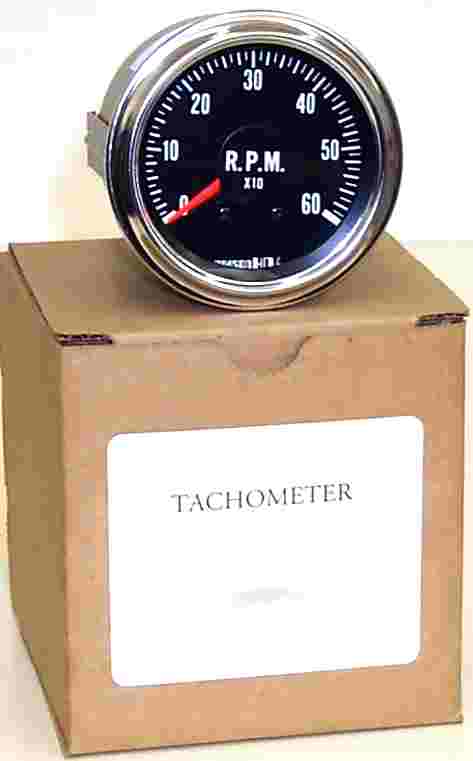

THIS TACH USED WITH A MATCHING SENSOR IT CAN BE FITTED TO MOST ANY "800" MACHINES

G-S667J

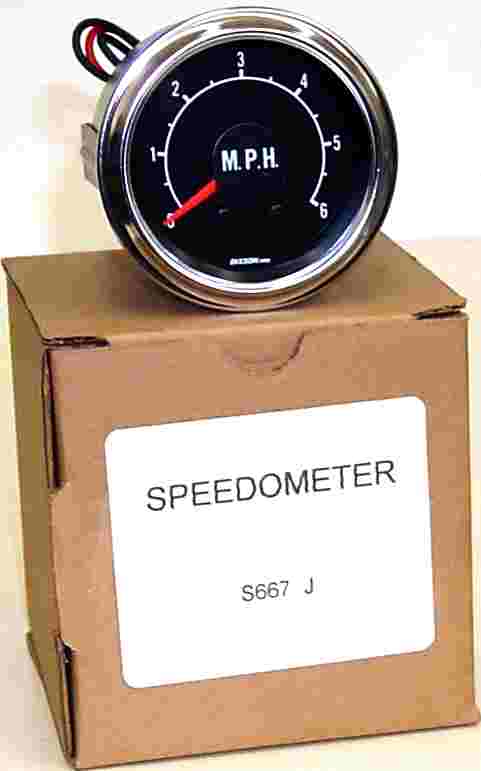

GROUND SPEED METER FOR "800" CHISHOLM'S.



PICTURE AVAILABLE SOON SENDER FOR G-S667H AND G-S667J. WE HAVE THESE IN 2 1/2" AND 4" UNITS. THESE ARE DESIGNED TO BE USED WITH THE TACHOMETER AND SPEEDOMETER LISTED ABOVE.

G-S667G LONG

G-S667G SHORT

HIGH PRESSURE SWIVELS G-S555K-1
HYDRAULIC PUMP FOR "800" CHISHOLM
WE HAVE THESE PUMPS BUILT WHEN YOU ORDER THEM

G-GHB8697

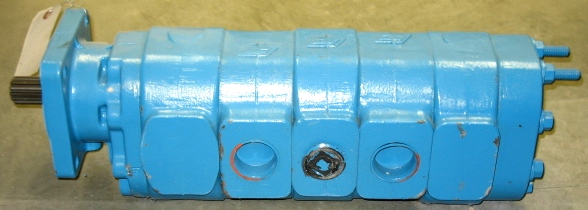

EARLY 3 STAGE HYD PUMPS FOR CHISHOLM 'S WITH FORD OR IH TRACTORS ON TOP. WE HAVE THESE PUMPS BUILT WHEN YOU ORDER THEM G-GHB3616
FAN EYE TO FIT OUR 22" FANS

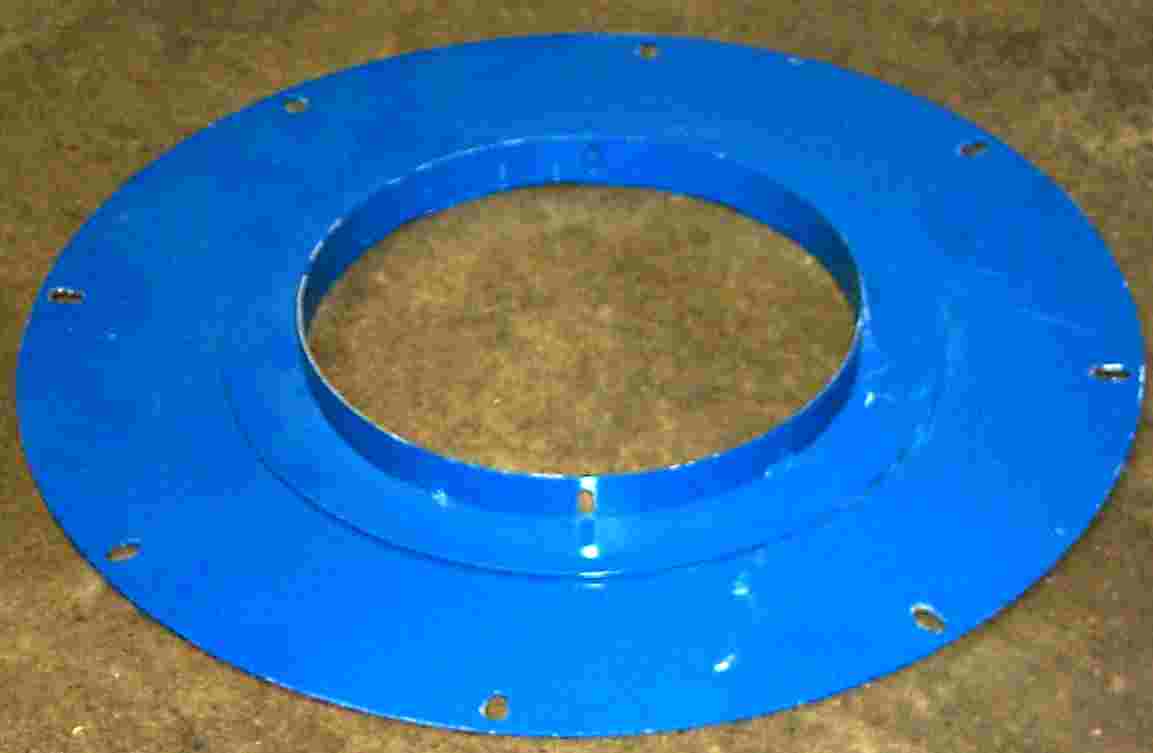

G-GHB-A3403

Fans are manufactured as left or right. Check before ordering

All fans are static balanced.

G-GHB-A3398

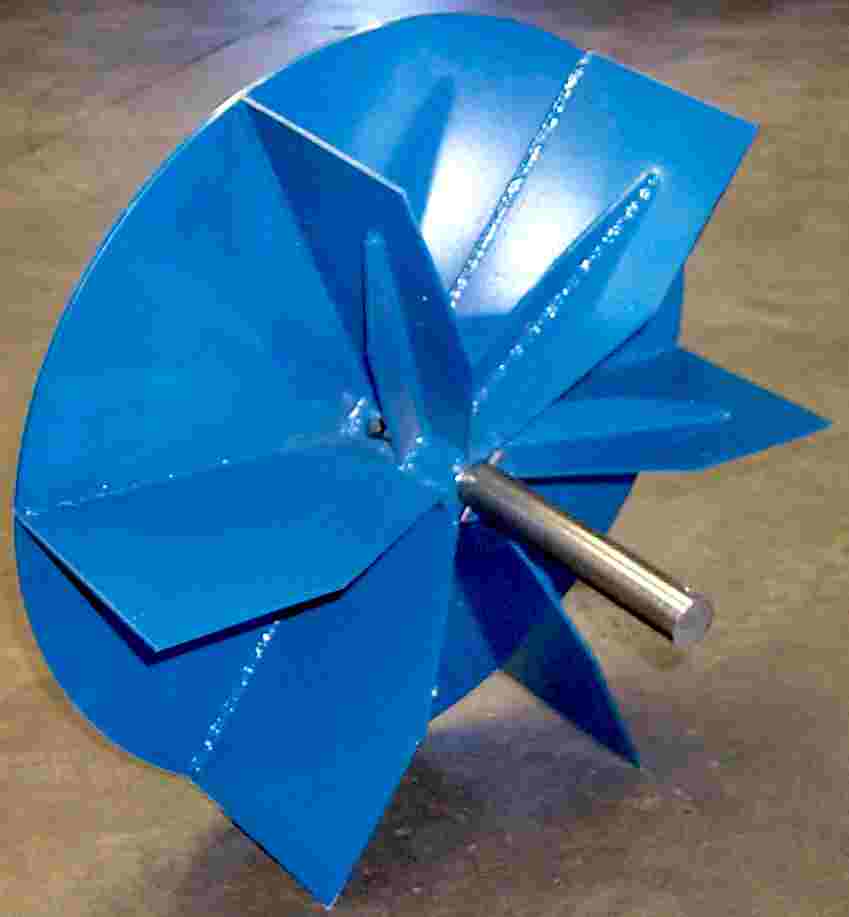

RH 22" FAN ROTOR

G-GHB-A3399
LH 22" FAN ROTOR

G-GHB3408
FAN SHAFT

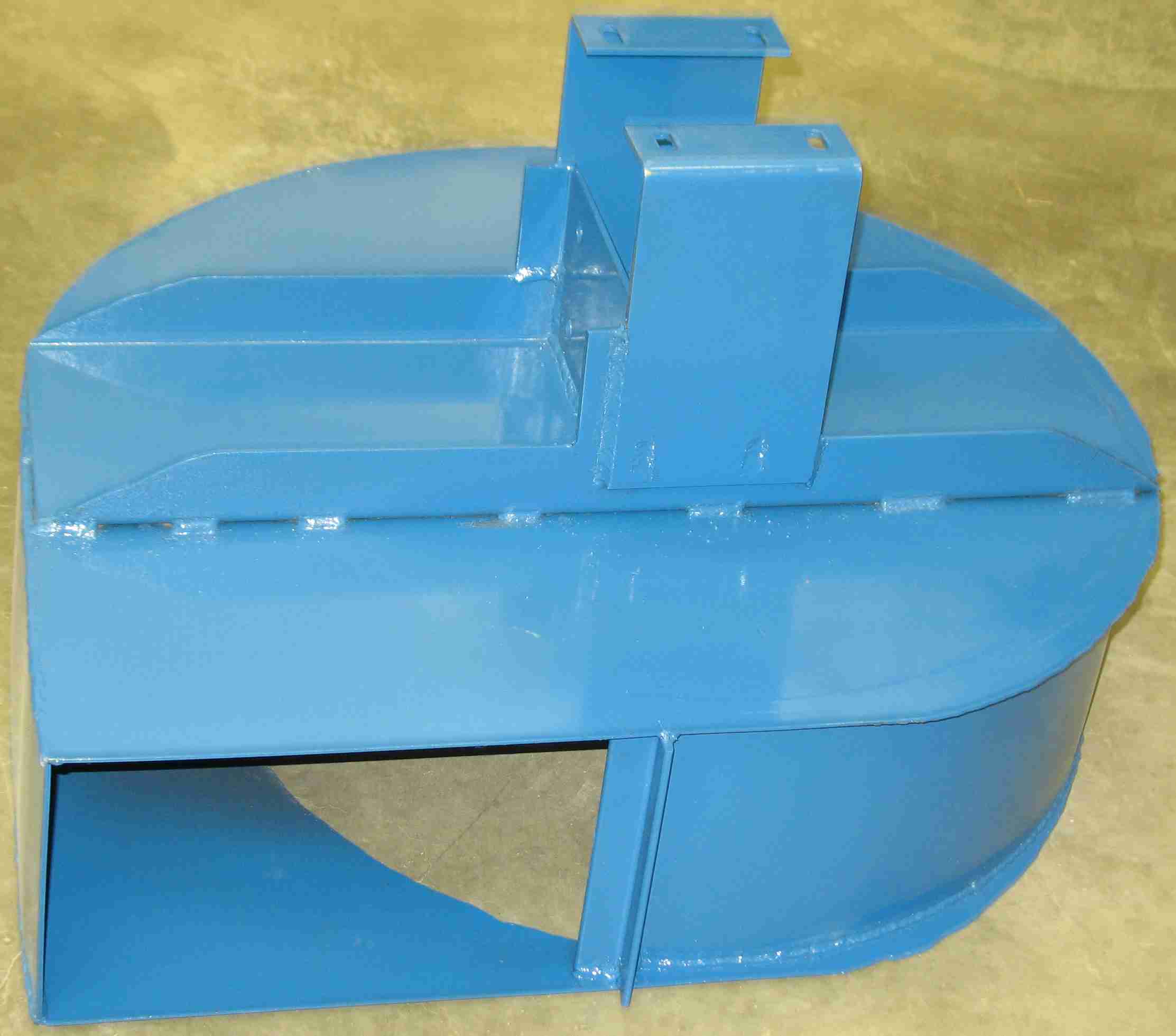

FAN HOUSINGS

G-GHB-A3382
RH FAN HOUSING

G-GHB-A3383
LH FAN HOUSING

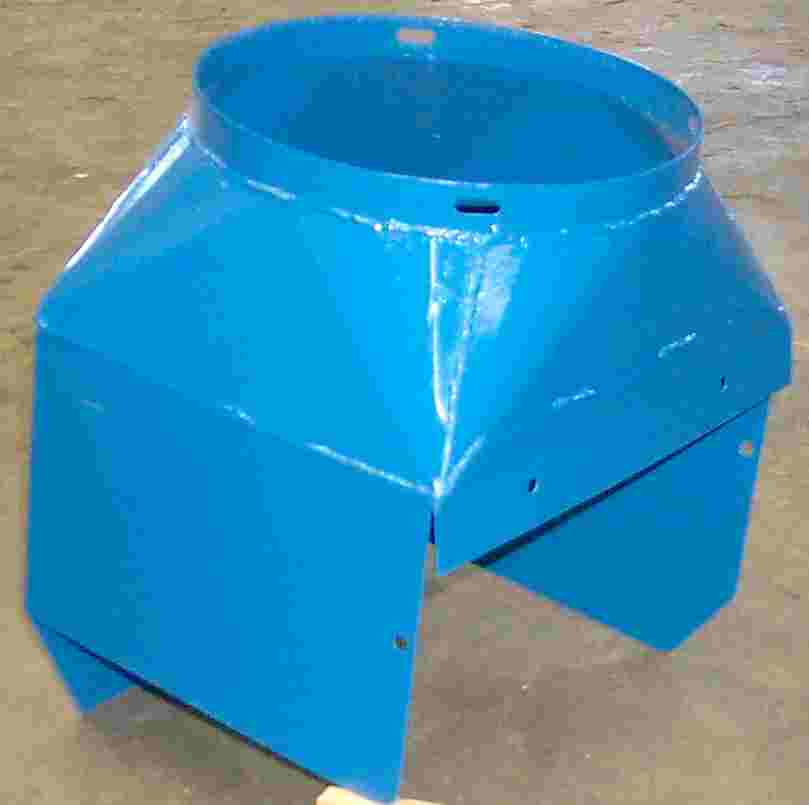

Fan legs are built for left and right. Check before ordering

G-GHB-A9096
RH FAN LEG FOR OUR 22" FANS

G-GHB-A9097
LH FAN LEG FOR OUR 22" FANS

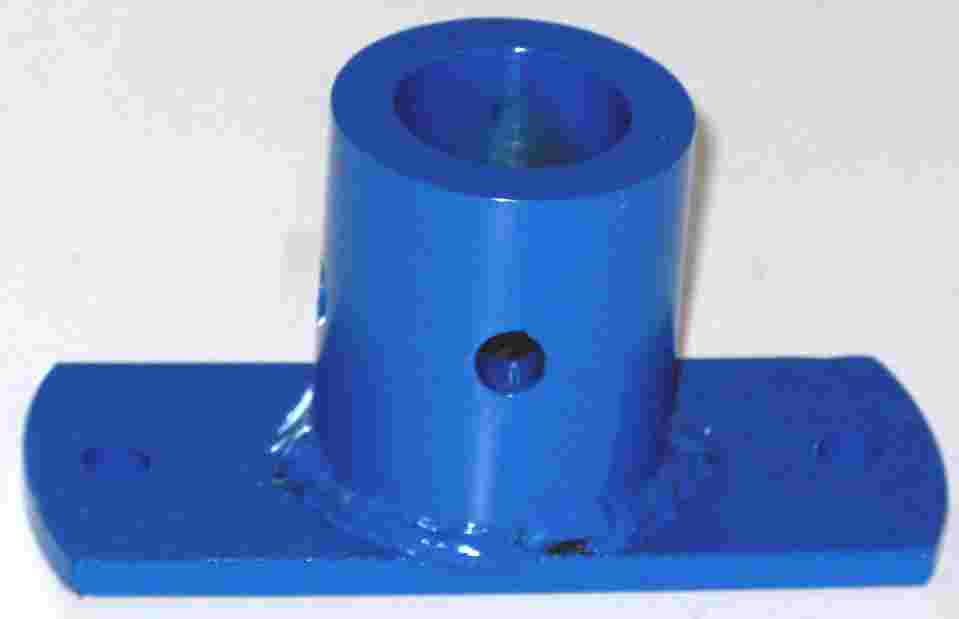

Hub for cain cutter knife.
Fits both left and right sides.
G-GHB-A3424

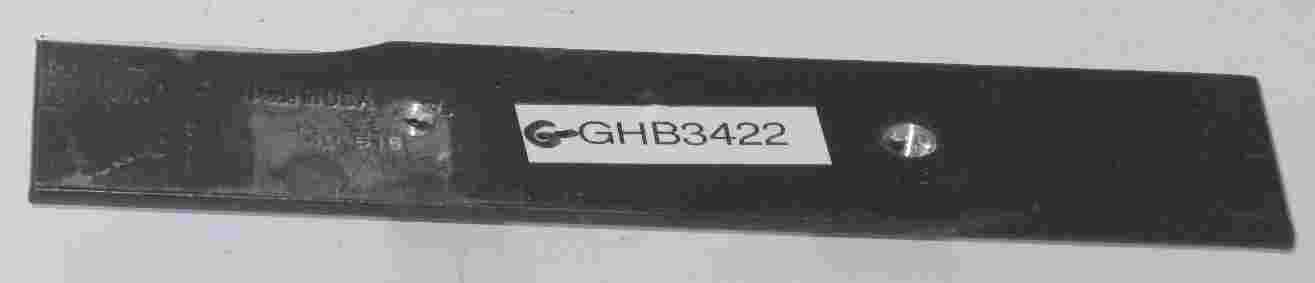

Cain cutter knife
Fits both left and right sides
G-GHB3422
ON-OFF SPEED CONTROLL VALVE.
These are popular re-fits for other brands of grape harvesters
G-GHB0085

G-GHB3660

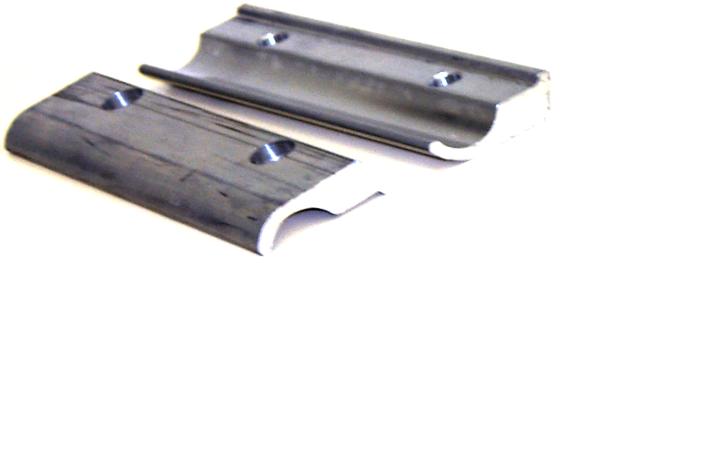

CLAMP HALF

G-GHB3261

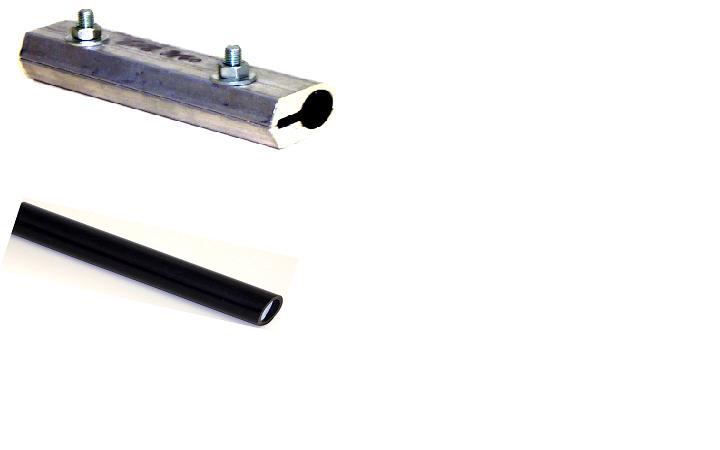

BUSHING

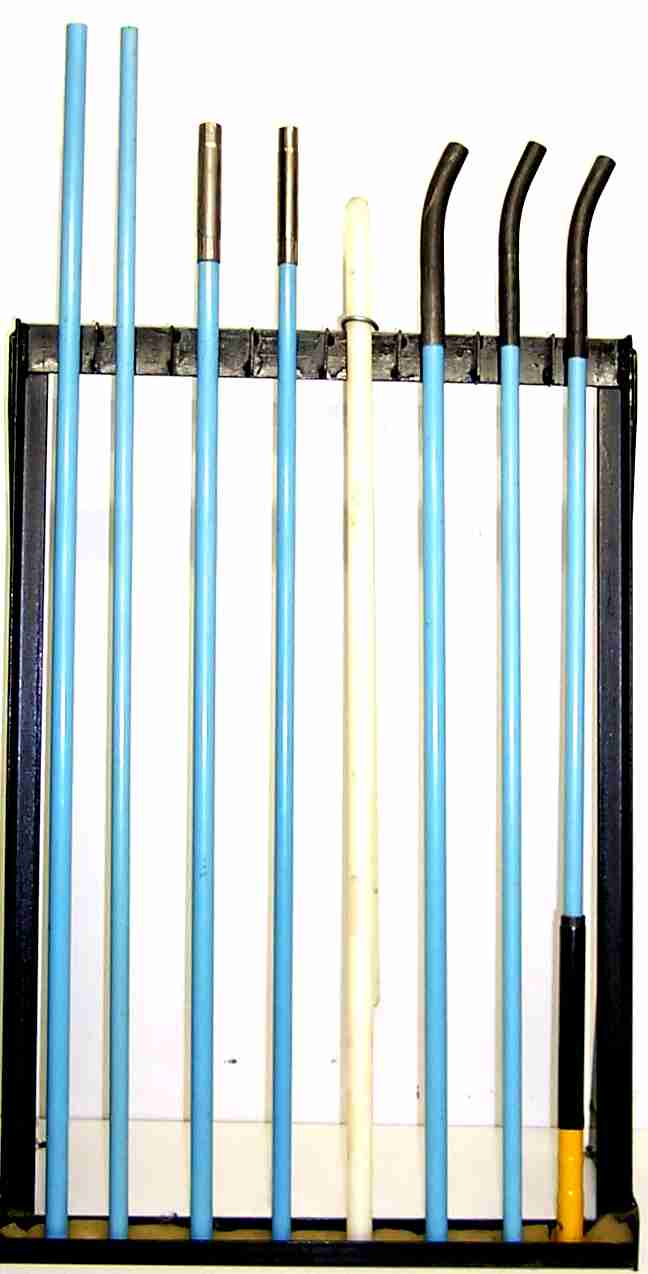

We build many different striker rods, some with metal wear tips, and some without. Normal striker rods are from 44" to 48" long in 3/4" and 7/8" diameters. All nylon rods are 1" diameter.



Call or e-mail us with your requirements.

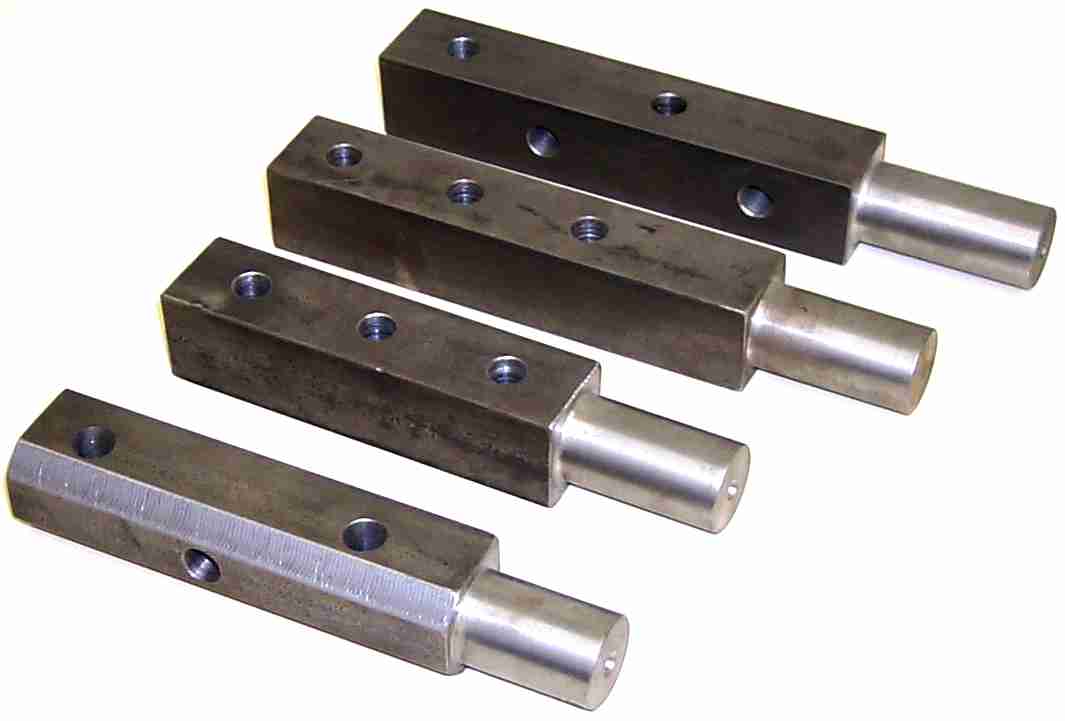

Through out the years there were different pivot shafts used on the different machines. Check your machine closely before ordering Pivot Shafts
We have a full complement of filters commonly used on Chisholm-Ryder harvesters .

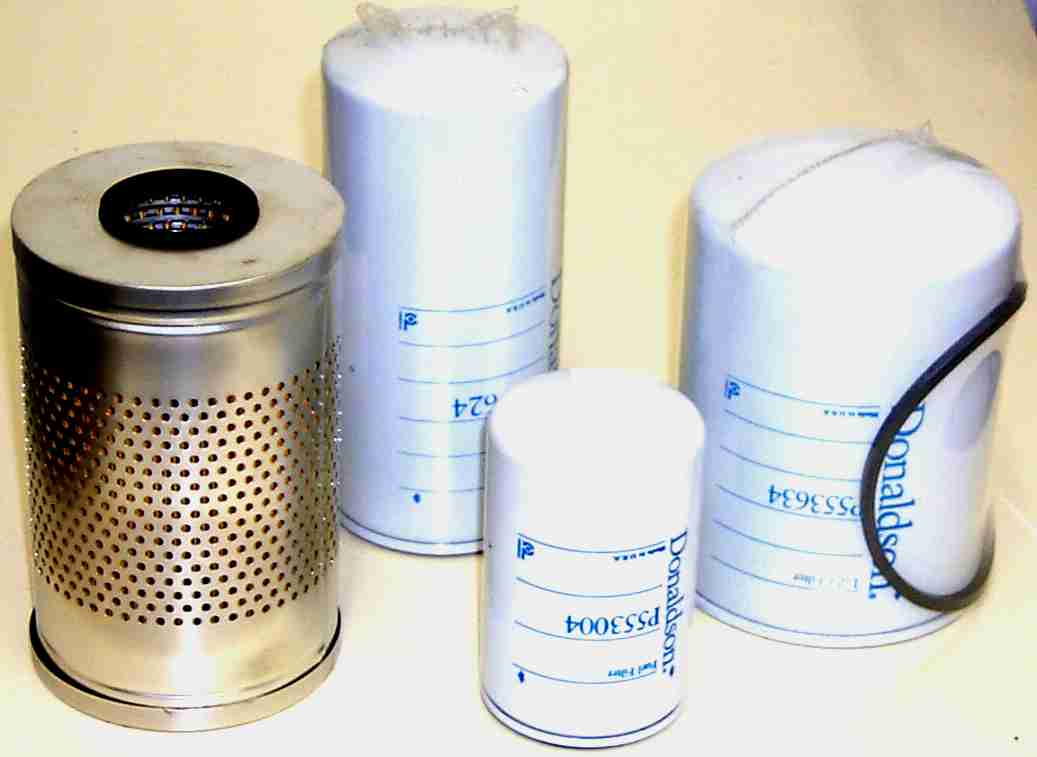

Most difficult to find is the G-S547AC internal cartridge. We stock lots of them.
Common Filters

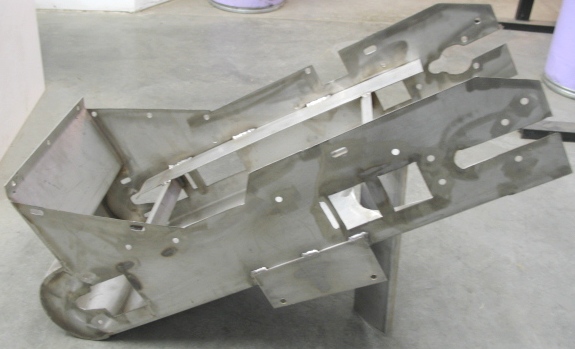

First elevator bed. This is a replacement for all Chisholm-Ryders

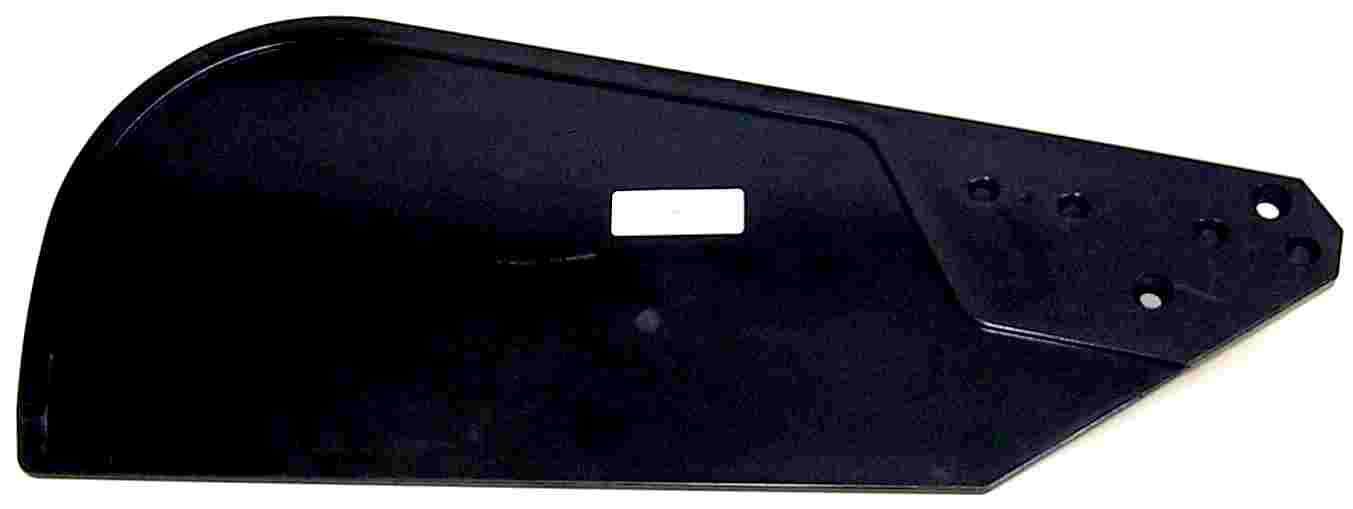

LEFT SIDE PICTURED

G-GHB-A3163B
We have all the belts in stock. I will try to get pictures on as soon as time permits.

This is just a start. We plan to load more parts & descriptions soon as time permits.

Note: Manufacture's name brands and part numbers are used for identification purposes only. All parts are new unless stated and are from our major aftermarket manufactures.
